Uniform Temperature Vertical Bell Vacuum Sintering Furnace For Debinding

Model Number : BF216-11

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Steel Molding

Fuel : Electric

Atmosphere : Air

Effective Chamber Dimensions : 1520×1520×3000mm(W*D*H)

Rated Temperature : 850ºC

Maximum Temperature : 1050°c

Transport Package : Wooden Packaging

Specification : 1520× 1520× 3000mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Supply Ability : Customized

Customization : Available

Certification : ISO

Place Style : Vertical

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Contact Now

Uniform Temperature Vertical Bell Vacuum Sintering Furnace For Debinding
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 1520×1520×3000mm (W×D×H)
Rated Temperature 850°C
Maximum Temperature 1050°C
Transport Package Wooden Packaging
Specification 1520×1520×3000mm (W×H×D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description

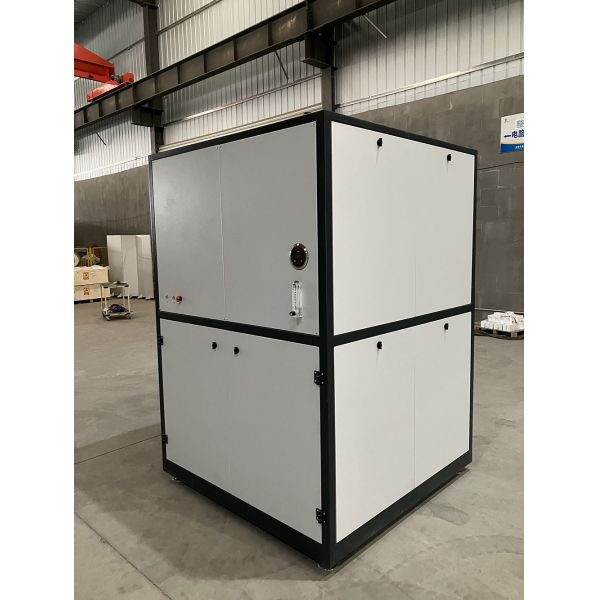

Uniform Temperature Vertical Style Chitherm BF216-11 Type Bell Furnace for Optimal Heating Performance

Equipment Name and Model:

BF216-11 Bell Furnace

Application Fields:

Primarily used for debinding and sintering processes of Low Temperature Co-fired Ceramics (LTCC), with broad applicability for sintering processes of related electronic products.

Technical Specifications:
  • Rated Temperature: 850°C
  • Maximum Temperature: 1050°C
  • Furnace Chamber Size: 600mm×600mm×600mm (D×W×H)
  • Effective Size: 400mm×400mm×400mm (D×W×H)
  • Heating Element: FEC Ceramic Fiber Heating Plate
  • Maximum Heating Power: 40kW
  • Insulation Power of the Empty Furnace: ≤25kW
  • Maximum Gas Preheating Power: 4×3kW
  • Thermocouple Type: K Graduation
  • Number of Temperature Zones: 4
  • Temperature Control Precision: ≤±1°C
  • Temperature Control Method: Imported Japanese temperature control module
  • Furnace Temperature Uniformity: Better than ±3°C within effective area
  • Power-off Protection: Equipped with UPS power supply system
  • Surface Temperature Rise: ≤35°C
  • Operating Noise: ≤75dB
  • Load-bearing Capacity: ≤150Kg
  • Equipment Weight: 1500kg
Delivery List
Item Note Qty.
Basic Components Main Furnace Unit 1 UNIT
Inspection Certificate Certificates of major outsourced components 1 SET
Technical Documents Instruction Manual, Random Technical Documents 1 SET
Key Components Silicon Molybdenum Rod 1 SET
Touch Screen 1 SET
Temperature Controller 1 SET
Spare Parts 1 UNIT
Overall Technical Description

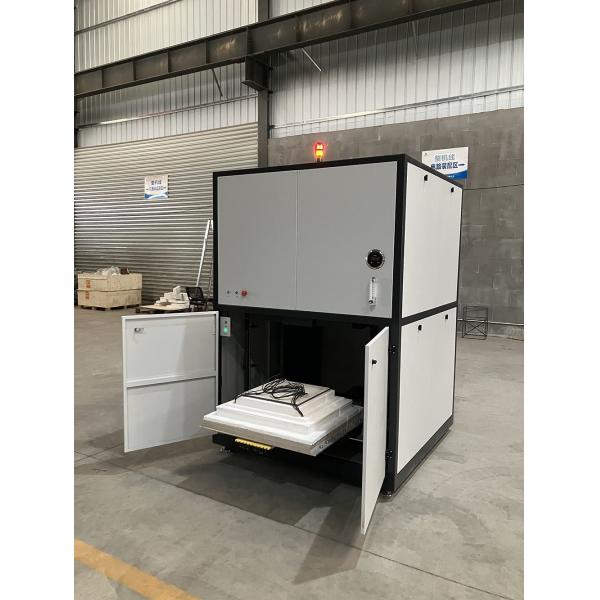

The equipment is primarily composed of an outer frame, square furnace chamber, bottom support, lifting system, and control system.

Uniform Temperature Vertical Bell Vacuum Sintering Furnace For Debinding Uniform Temperature Vertical Bell Vacuum Sintering Furnace For Debinding Uniform Temperature Vertical Bell Vacuum Sintering Furnace For Debinding
